Basic Specifications
Material
SS304 / SS316L / Plastic
Product Description

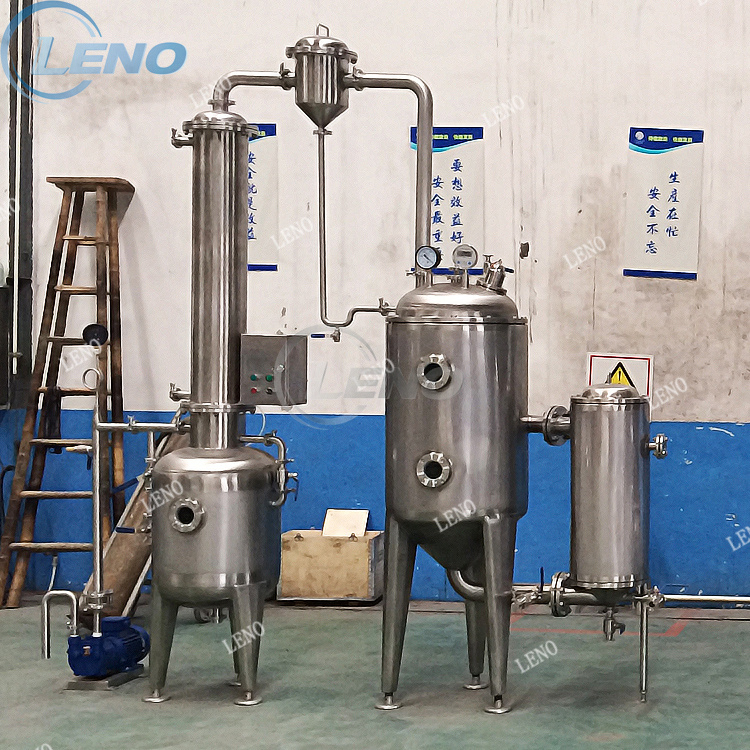

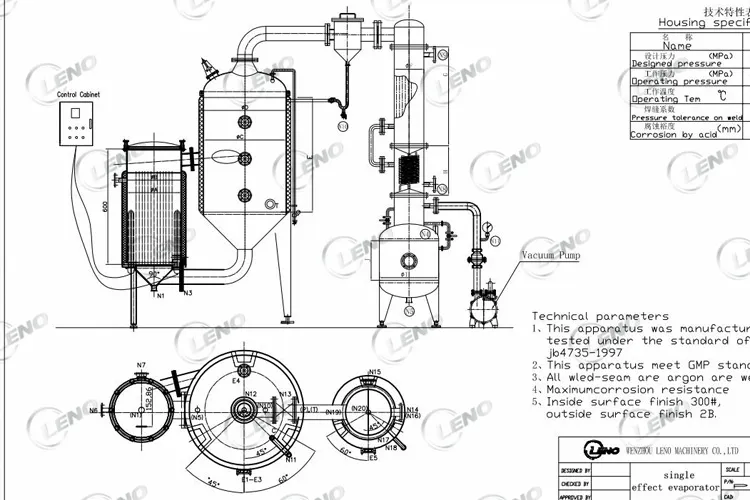

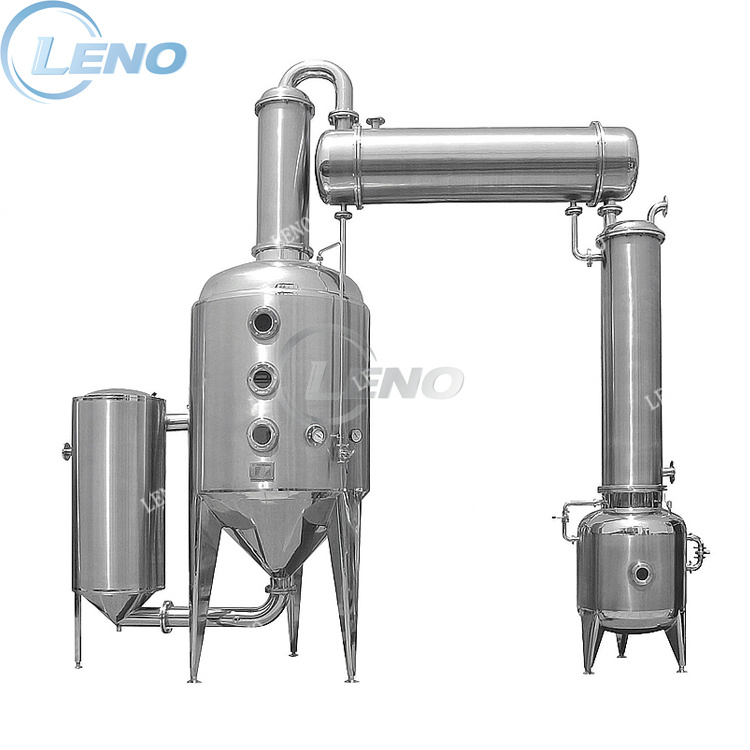

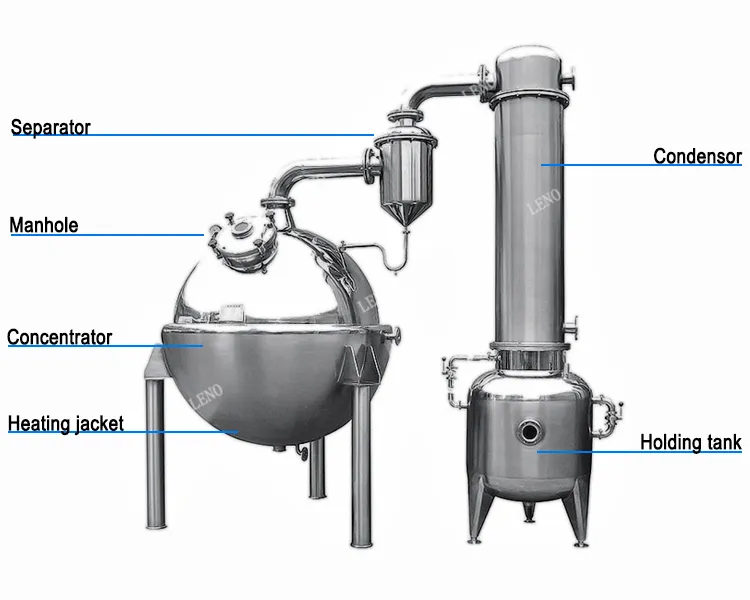

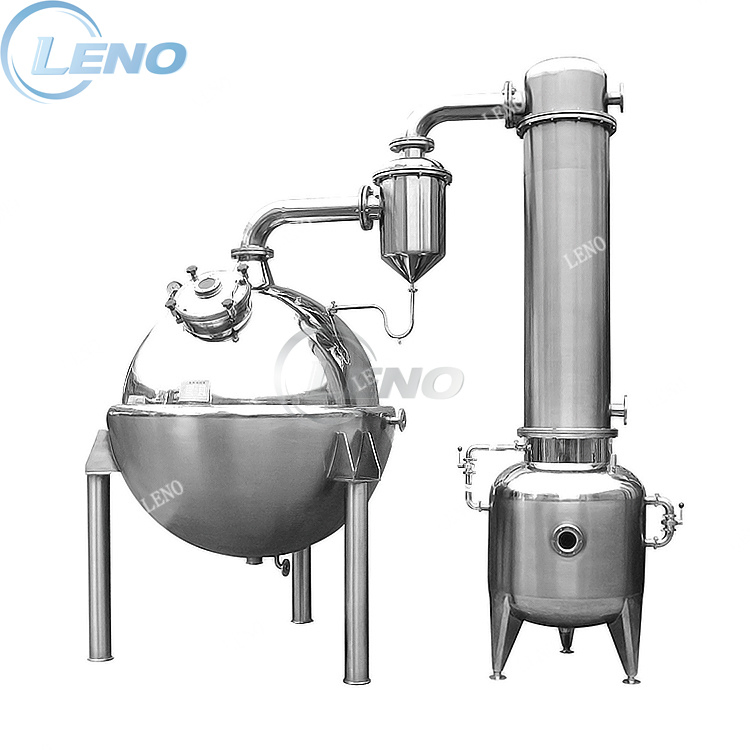

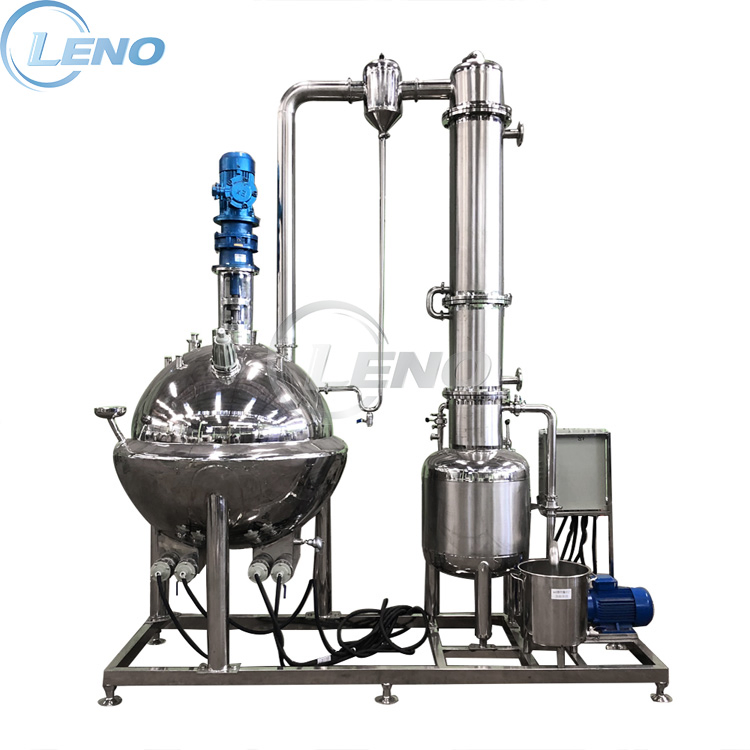

1. Advanced Concentration Process: The vacuum concentrator utilizes vacuum evaporation and mechanical separation. It consists of a heater, evaporation chamber, foam remover, condenser, cooler, and liquid receiver. All material-contact parts are crafted from high-grade SUS304/316L.
2. Wide Application: Ideally suited for liquid evaporation and concentration in pharmacy, food, chemical, and light industries. It features short concentration times and protects thermal-sensitive materials effectively.
3. High Efficiency: By operating under low pressure (18-8Kpa), it allows liquid to evaporate at lower temperatures via indirect steam heating, significantly reducing nutrient loss while maintaining a high evaporation rate.
| High Performance Vacuum Evaporator Features |
| Capacity | 0.1T/H - 5T/H (Customized) |
| Heater Type | Electric Heating / Steam Heating |
| Working Temp | 40°C ~ 80°C |
| Working Pressure | -0.08Mpa |
| Main Components | Quick open manhole, CIP cleaners, Sterile respirator, Adjustable Legs, Sanitary valves, Scraped wall mixer. |
| Model |
Volume (L) |
Evaporation (KG/H) |
Vacuum Pump |
Weight (KG) |
| RVC100 | 150 | 100 | 1.5KW | 320 |
| RVC500 | 600 | 500 | 3.0KW | 680 |
| RVC1000 | 1000 | 1000 | 4.0KW | 860 |
| RVC2000 | 2000 | 2000 | 5.5KW | 1120 |
| RVC5000 | 5000 | 5000 | 11.0KW | 1700 |
Frequently Asked Questions
Are you a manufacturer?
We operate as a factory with an international sales division specialized in supporting global distributors.
Do you provide technical consulting?
Yes, we discuss technical details and offer suggestions in English via phone or digital communication for instant support.
What is the lead time for products?
Standard Ready-To-Ship products are available in 2-3 days, while customized solutions move from design to production quickly.
What are your payment terms?
We accept Trade Assurance Orders, T/T, and L/C.
How is the after-sales service?
We provide fast support including a one-year warranty and permanent free consulting services.
How is shipment handled?
Shipping is determined based on order quantity, cost efficiency, and customer preference.
